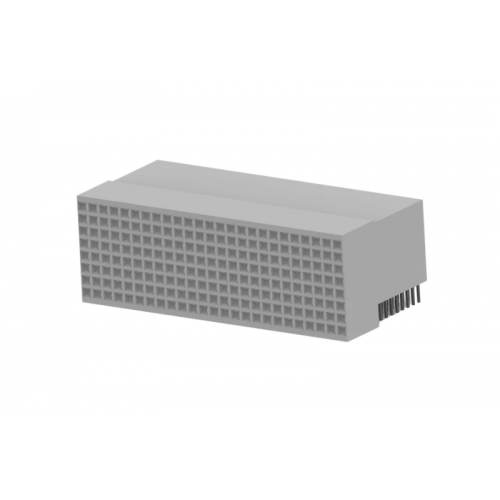

TE Connectivity AMP 646445-1 Z-PACK 2mm HM Receptacle Connector

The TE Connectivity AMP 646445-1 is a high-density board-to-board receptacle designed for backplane interconnection in electronic systems. Part of the Z-PACK 2mm HM series, this 200-position connector features a right-angle PCB mounting design that supports space-efficient integration into compatible electronic assemblies.

With eight rows, 25 columns, and a 2mm contact pitch, the connector provides multiple signal connections within a compact footprint. Its press-fit termination supports PCB installation without conventional soldering at the connector interface, making it relevant for specialised backplane designs, equipment maintenance, and replacement component sourcing.

1. Compatibility & Installation

• Connector Type: PCB mount receptacle
• Interface: Z-PACK 2mm HM
• Mounting Orientation: Right angle
• Termination: Through-hole press-fit
• Application: Compatible board-to-board and backplane assemblies

Verify the mating connector, PCB layout, and manufacturer drawings before installation.

2. Key Features

• 200-position connector configuration
• Eight rows and 25 columns
• 2mm contact pitch
• Socket contacts with gold-plated mating areas
• Phosphor bronze contact material
• Maximum contact current rating of 1.5A
• Signal data rate up to 1Gb/s

3. Applications & Compatibility

• Electronic backplane assemblies
• Industrial and communications equipment
• High-density PCB interconnections
• Replacement and maintenance of compatible legacy systems

Product Status: TE Connectivity lists part 646445-1 as superseded. Confirm availability and identify a suitable replacement with the manufacturer's documentation before ordering.
